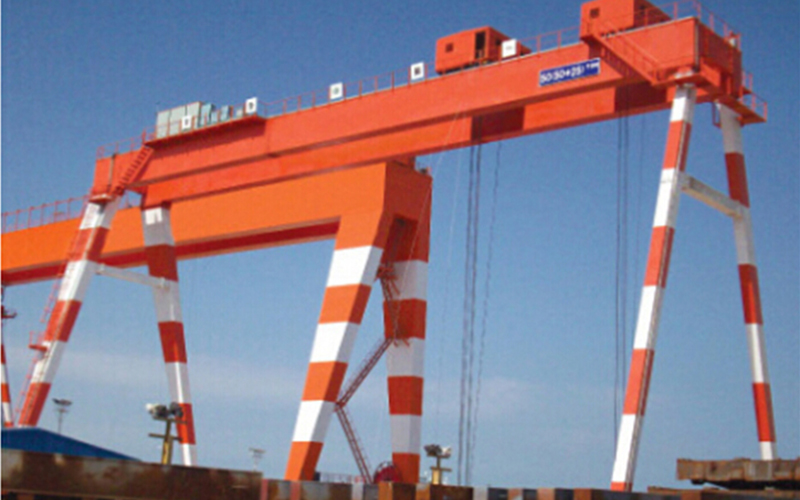

ME型通用门式起重机

ME型通用门式起重机依据GB/T14406-2011标准所设计、制造；本产品适用于冶金、加工制造、造船等行业的露天加工区、仓库、货场用来装卸和搬运长件物品和其他物料．本机型是在MG型通用门式起重机的基础上设有两台起重小车，每台小车可以单独工作，也可以联合动作。
本系列产品起重量一般为 (5+5)t、(7.5+7.5)t、(10+10)t、(16+16)t、(20+20)t、(25+25)t，跨度为18-35m，起重机工作级别一般为A5～A6级
本机其他主要特点与MG型通用双粱门式起重机基本相同。

    The main difference between ME and MG crane is that the former has two trolleys that can be driven respectively or together , and it enables it to convey long items wilhout difficulty.

Performance data
    Range of lifting load：(5+5)t，(7.5+7.5)t，(10+10)t,(16+16)t,(20+20)t,(25+25)t.
    Range of span    18～35m.
    Allowed crane classification group    A5～A6.
    Main features of this product refer to those of MG gantry crane.
